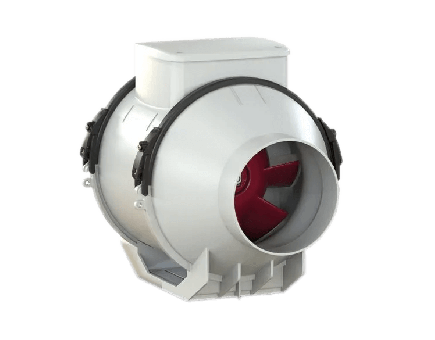

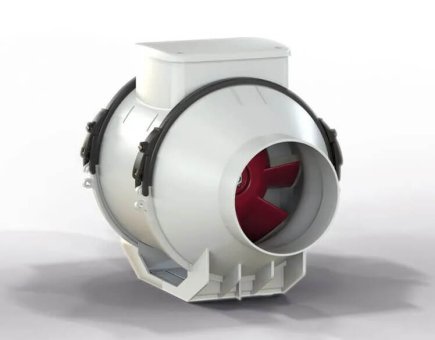

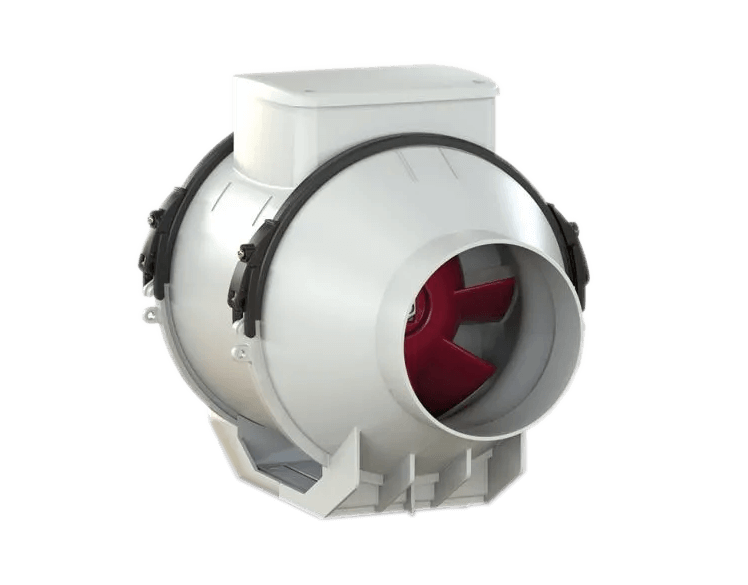

Lineo 100 Duct Fan – compact, efficient and versatile
The Lineo 100 duct fan impresses with its compact design, high performance and flexible applications. With a diameter of 100 mm, it is perfectly suited for installation in ventilation systems with round ducts and reliably ensures controlled supply and exhaust air.
Efficient ventilation in small spaces
Despite its compact 100 mm diameter, this fan delivers a powerful airflow while maintaining low energy consumption and a quiet operation.
Durable and long-lasting
The robust housing made of high-quality plastic ensures a long service life and easy cleaning. The motor is equipped with maintenance-free ball bearings, guaranteeing a quiet, smooth and reliable continuous operation.
Easy installation and flexible use
This wall fan can be installed both horizontally and vertically, adapting easily to different installation requirements. With its 100 mm diameter, it is compatible with standard duct systems and can be seamlessly integrated into existing ventilation setups.
Choosing the Lineo 100 duct fan means opting for a space-saving, energy-efficient and reliable solution for optimal ventilation.
Frequent use:
- Industry- Workshop
- Office
- Commercial area
| Number of Speed Levels | 2 levels |
| Special Features (RV) | Mounting bracket, removable fan unit, with Mixvent technology, with adjustable overrun relay (3–20 min) |
| Maximum Speed | 2,030 rpm |
| Maximum Total Pressure | 161.9 Pa |
| Maximum Power | 23 watts |
| Maximum Airflow | 255 m³/h |
| Material | PP plastic |
| Motor | speed controllable, ball bearing, thermal overload protection |
| Nominal Width (NW) | 100 mm |
| Sound Pressure Level Lp -3m | 39.4 dB(A) |
| Protection Class | II |
| Voltage | 220–240 volt~50/60Hz |
| Maximum Current Consumption | 0.11 A |
| Maximum Temperature | +60 °C |
| Fan Type | Semiradial fan, duct fan |
 |
| Image | Article | Nominal Diameter | Power | Maximum Airflow | Maximum Speed | Maximum Total Pressure | Item No. | Price |
|---|---|---|---|---|---|---|---|---|
 |
Duct fan LINEO 100 Q - quiet inline fan Ø 100 mm | 100 mm | 23 watts | 255 m³/h | 2.030 RPM | 161,9 Pa | 17144 | 199,99 € Preis inkl. 19 % MwSt. zzgl. Versandkosten |
|
Duct fan LINEO 100 Q - quiet inline fan Ø 100 mm | 100 mm | 15 watts | 200 m³/h | 2.450 RPM | 73,6 Pa | 17143 | 149,99 € Preis inkl. 19 % MwSt. zzgl. Versandkosten |
|
Duct fan LINEO 100 Q T - quiet inline fan Ø 100 mm | 100 mm | 23 watts | 200 m³/h | 2.030 RPM | 161,9 Pa | 17184 | 169,99 € Preis inkl. 19 % MwSt. zzgl. Versandkosten |
|
Duct fan LINEO 100 T - quiet fan with timer function Ø 100 mm | 100 mm | 15 watts | 255 m³/h | 2.450 RPM | 73,6 Pa | 17185 | 219,99 € Preis inkl. 19 % MwSt. zzgl. Versandkosten |
 |

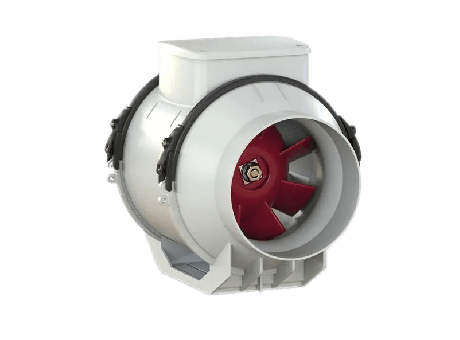

Duct fan LINEO 125 - quiet inline fan Ø 125 mm | 125 mm | 33 watts | 365 m³/h | 2.140 RPM | 166,8 Pa | 17145 | 209,99 € Preis inkl. 19 % MwSt. zzgl. Versandkosten |
|
Duct fan LINEO 125 Q - quiet fan with timer function Ø 125 mm | 125 mm | 33 watts | 550 m³/h | 2.140 RPM | 166,8 Pa | 17186 | 239,99 € Preis inkl. 19 % MwSt. zzgl. Versandkosten |
 |

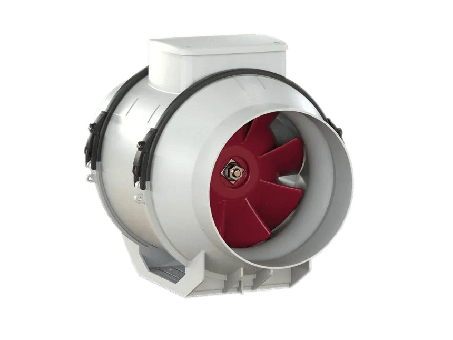

Duct fan LINEO 150 - quiet inline fan Ø 150 mm | 150 mm | 58 watts | 550 m³/h | 2.100 RPM | 264,9 Pa | 17146 | 259,99 € Preis inkl. 19 % MwSt. zzgl. Versandkosten |
|
Duct fan LINEO 150 T - quiet fan with timer function Ø 150 mm | 150 mm | 58 watts | 550 m³/h | 2.100 RPM | 264,9 Pa | 17187 | 279,99 € Preis inkl. 19 % MwSt. zzgl. Versandkosten |
 |

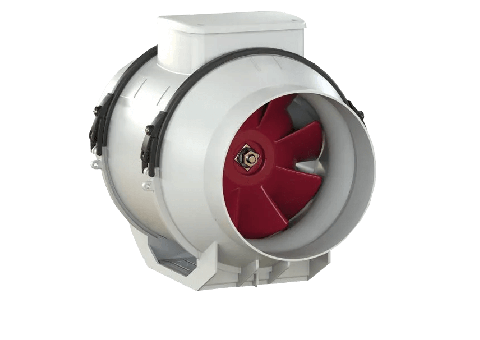

Duct fan LINEO 160 - quiet inline fan Ø 160 mm | 160 mm | 58 watts | 550 m³/h | 2.100 RPM | 264,9 Pa | 17147 | 259,99 € Preis inkl. 19 % MwSt. zzgl. Versandkosten |
|
Duct fan LINEO 160 T - quiet fan with timer function Ø 160 mm | 160 mm | 58 watts | 550 m³/h | 2.100 RPM | 264,9 Pa | 17188 | 279,99 € Preis inkl. 19 % MwSt. zzgl. Versandkosten |
 |

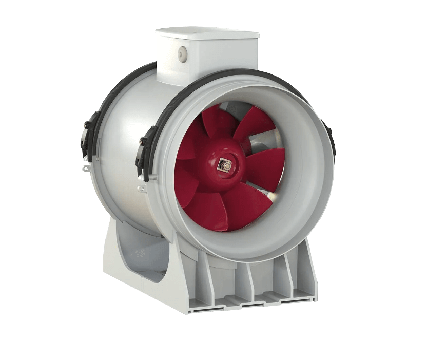

Duct fan LINEO 200 - quiet inline fan Ø 200 mm | 200 mm | 110 watts | 1135 m³/h | 2.710 RPM | 294,2 Pa | 17180 | 309,99 € Preis inkl. 19 % MwSt. zzgl. Versandkosten |
|
Duct fan LINEO 200 Q - quiet inline fan Ø 200 mm | 200 mm | 75 watts | 950 m³/h | 2.030 RPM | 284,5 Pa | 17148 | 279,99 € Preis inkl. 19 % MwSt. zzgl. Versandkosten |
|
Duct fan LINEO 200 Q T - quiet inline fan Ø 200 mm | 200 mm | 75 watts | 950 m³/h | 2.710 RPM | 294,2 Pa | 17189 | 319,99 € Preis inkl. 19 % MwSt. zzgl. Versandkosten |
|
Duct fan LINEO 200 T - quiet fan with timer function Ø 200 mm | 200 mm | 110 watts | 1135 m³/h | 2.030 RPM | 284,5 Pa | 17177 | 339,99 € Preis inkl. 19 % MwSt. zzgl. Versandkosten |
 |

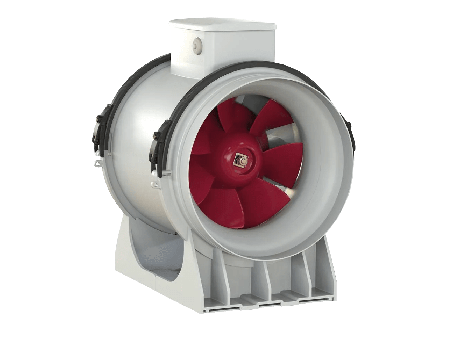

Duct fan LINEO 250 - quiet inline fan Ø 250 mm | 250 mm | 145 watts | 1440 m³/h | 2.030 RPM | 364,8 Pa | 17181 | 469,99 € Preis inkl. 19 % MwSt. zzgl. Versandkosten |
|
Duct fan LINEO 250 Q - quiet inline fan Ø 250 mm | 250 mm | 110 watts | 990 m³/h | 2.030 RPM | 519,9 Pa | 17149 | 399,99 € Preis inkl. 19 % MwSt. zzgl. Versandkosten |
|
Duct fan LINEO 250 Q T - quiet inline fan Ø 250 mm | 250 mm | 110 watts | 990 m³/h | 2.030 RPM | 519,9 Pa | 17197 | 449,99 € Preis inkl. 19 % MwSt. zzgl. Versandkosten |
 |

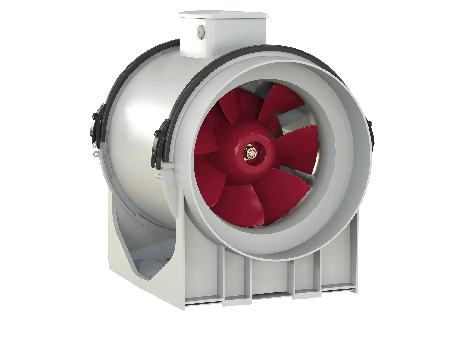

Duct fan LINEO 315 - quiet inline fan Ø 315 mm | 315 mm | 660 watts | 2590 m³/h | 2.030 RPM | 543,3 Pa | 17182 | 609,99 € Preis inkl. 19 % MwSt. zzgl. Versandkosten |
- Air output
- 255 m³/h
- Power
- 23 watt
- Model
- Lineo 100
- Air pressure max in Pa
- 169.9 Pa
- Revolutions
- 2.030 RPM
- Dimensions
- 100 mm
- Voltage
- 220-240 Volt~50/60Hz
- Amperage
- 0.11 A
- Temperature max.
- +60 °C
- Sound pressure
- 39.4 dB(A)
